Code: 641851
Phoenix Contact 1088676 Connector IPD PL 5P2,5 M GY
Normally In Stock

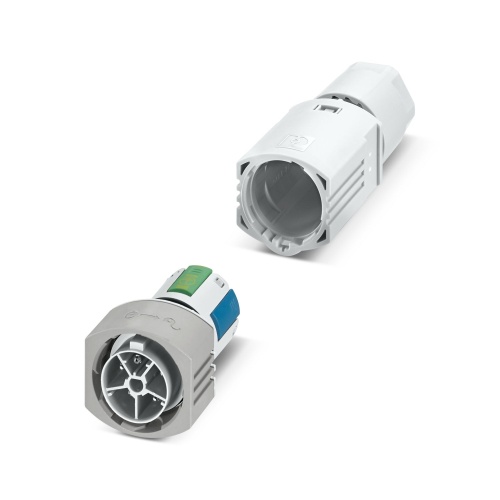

Phoenix Contact IPD PL 5P2,5 M GY Installation connector - 5 Positions, Light gray - 1088676
Condition: New
Usually ships Same Day or Next Day$19.25
Sale Price
$16.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088676 The connector family IPD is characterized by a push-lock connection method and can accommodate up to four pins with sizes ranging from 0.5 mm2 to 2.5 mm2. It features a power rating of 600 V and a maximum current capacity of 17.5 A, making it suitable for PA applications. The connector is available in light gray color with an external cable diameter range of 7 mm to 16 mm, while the internal pin size is indicated by a 'P' coding.
Specifications
Connector Color
Light Gray
Manufacturer
Phoenix Contact
Component
Installation Connector
Number of Positions
5
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
