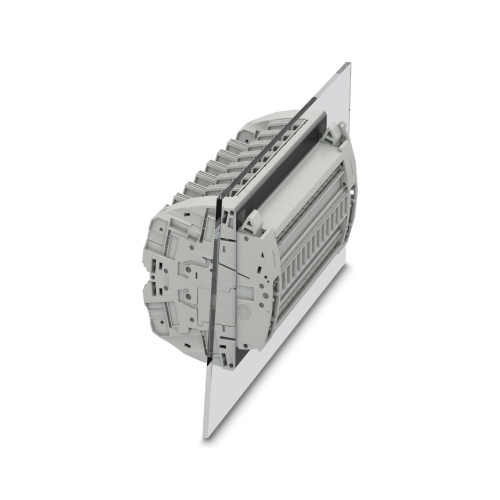

Phoenix Contact 3969954 Test terminal strip RSCWE 6-3/15
Normally In Stock
Code: 641384
Phoenix Contact RSCWE 6-3/15 Test terminal strip - 15 Positions, Gray - 3969954
Condition: New
Usually ships Same Day or Next Day$1076.32
Sale Price
$896.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3969954 A test terminal strip features a nominal voltage rating of 400 volts and is equipped with 30 connections arranged across 15 positions. The connections are made using ring cable lugs and have a rated cross-sectional area of 6mm², all on a single level. This type of terminal strip can be mounted to a panel and has a gray coloration.
Specifications
Terminal Block Component Color
Gray
Terminal Block Number of Connections
15
Jumper Pitch
8.2 mm
Manufacturer
Phoenix Contact
Sub Component
Test Terminal Strip
Component
Test Terminal Strip
Terminal Block Width
154.9 mm
Features
Space saving, thanks to compact, modular test terminal strips
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Maximum safety with leading and automatic transformer short circuit
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the transmission of signal currents, even after multiple actuations
