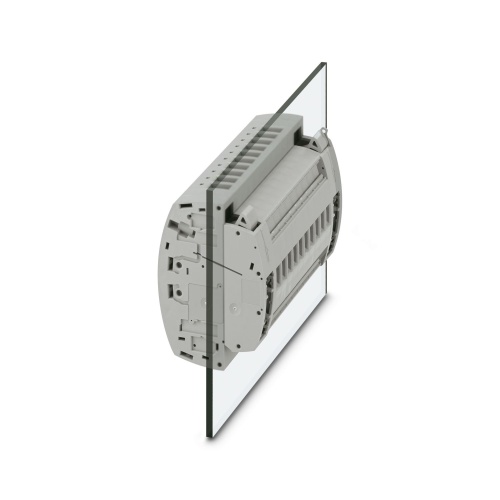

Phoenix Contact 3069658 Test terminal strip UTWE 6-2/10
Normally In Stock
Code: 641363
Phoenix Contact UTWE 6-2/10 Test terminal strip - 10 Positions, Gray - 3069658
Condition: New
Usually Ships Same day or Next Day$444.35
Sale Price
$370.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3069658 The test terminal strip has a nominal voltage of 400 V and can accommodate up to 20 connections across its 10 positions, which are secured with screw connections. The rated cross-sectional area is 6mm² at one level, ranging from 0.2mm² to 10mm², and it is designed for panel mounting, featuring a gray color.
Specifications
Terminal Block Number of Connections
10
Terminal Block Component Color
Gray
Jumper Pitch
8.2 mm
Manufacturer
Phoenix Contact
Sub Component
Test Terminal Strip
Component
Test Terminal Strip
Terminal Block Width

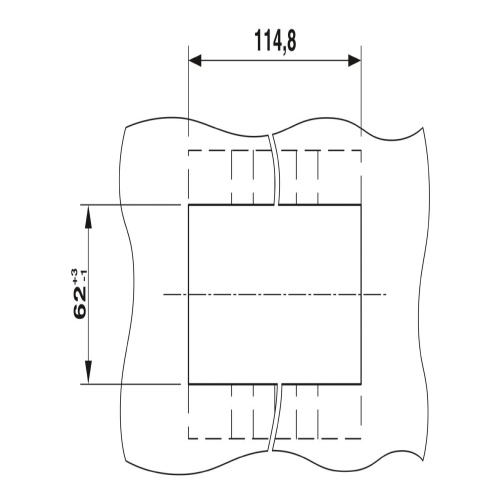

114.8 mm
Features
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to compact, modular test terminal strips
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the transmission of signal currents, even after multiple actuations
Maximum safety with leading and automatic transformer short circuit
