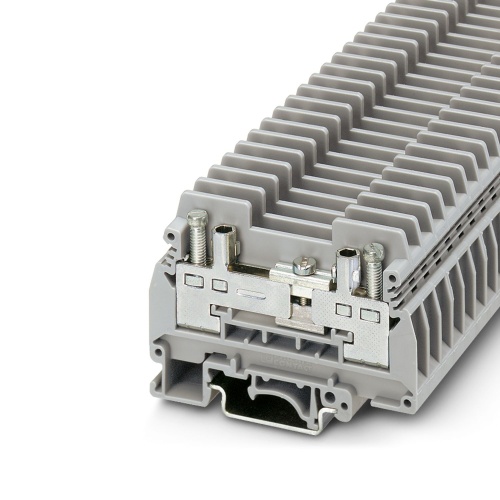

Phoenix Contact 0311087 Test disconnect terminal block URTK/S
Normally In Stock
Code: 641087
Phoenix Contact URTK/S Test disconnect terminal block - Gray - 311087
Condition: New
Usually Ships Same day or Next Day$22.20
Sale Price
$18.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0311087 The test disconnect terminal block features two test sockets that can accommodate either 4mm test plugs or receiving bridge bars or screw bridges. It has a nominal voltage rating of 400V and is capable of handling a nominal current of up to 41A. The connection method used is a screw connection, with one level of mounting. The rated cross-sectional area varies between 6mm2 and 10mm2, and it comes in three different mounting types: NS35/7.5, NS35/15, and NS32. Additionally, the product has a gray color.
Specifications
Terminal Block Width
8.2 mm
Terminal Block Component Color
Gray
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Test Disconnect Terminal Block
Features

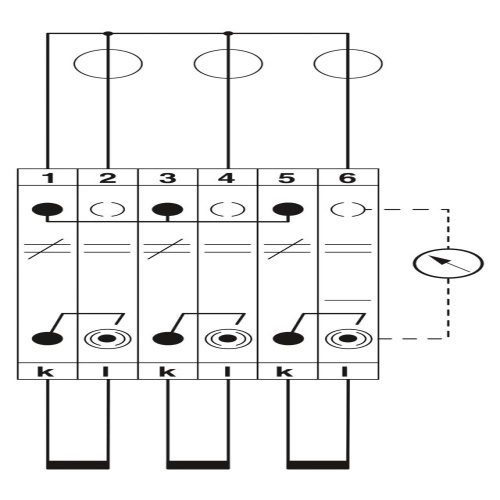

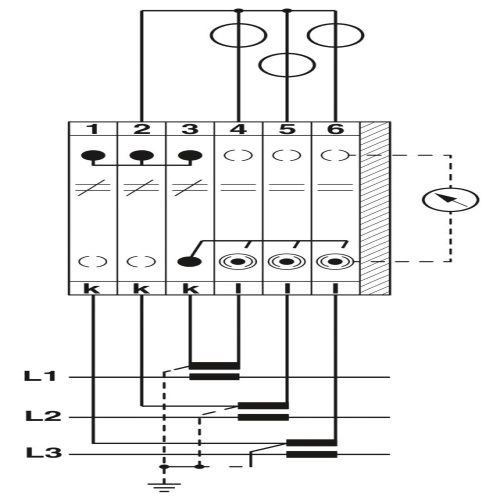

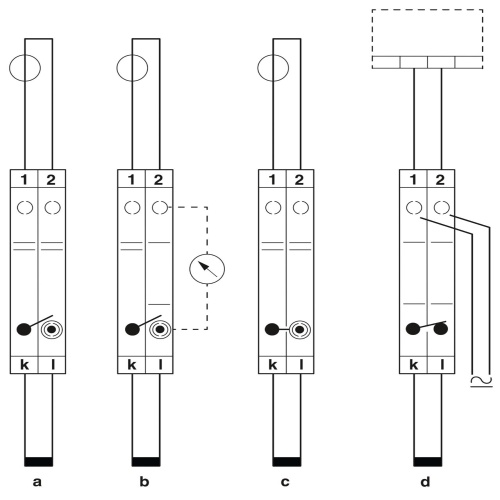

Easy and clear testing in current transformer secondary circuits can be performed using the test disconnect terminal blocks of the URTK/S range

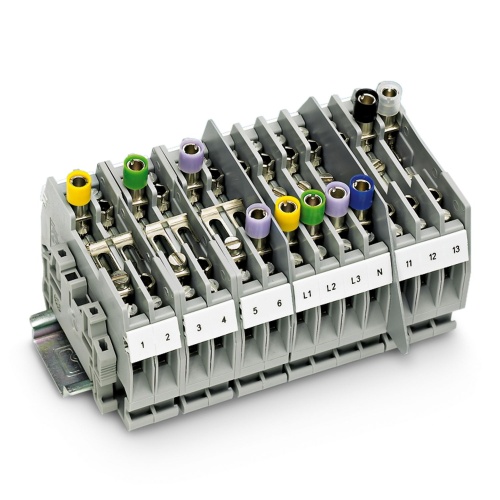

On both sides of the disconnect point, the terminal block has a test socket which can also be used to switch across to neighboring terminal blocks
Code: 641087
Phoenix Contact 0311087 Test disconnect terminal block URTK/S
$22.20
Sale Price
$18.50
MUST BUY IN PACKS OF 50
