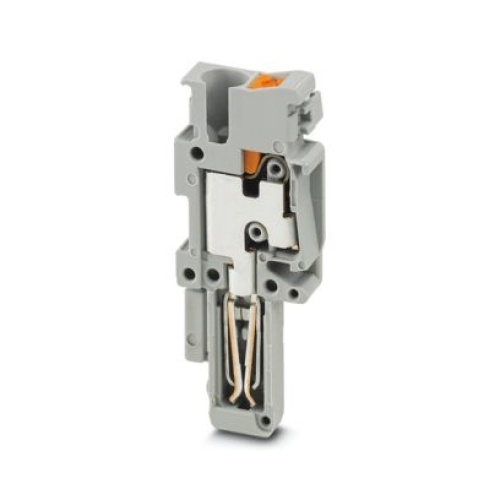

PP-H 2,5/1-M Phoenix Contact 3210091 gray Terminal Plug
PP-H 2,5/1-M Phoenix 3210091 Terminal Plug Push-in connection 500 V 24 Amp gray Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $2.94
Sale Price:
$1.81
Plug, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 1, number of positions: 1, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, height: 40.2 mm, color: gray
| Specifications | |
| Terminal Block Voltage Rating | 500 Volt |
| Terminal Block Width | 5.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 1 |
| Terminal Block Component Color | Gray |
| Terminal Block Max Wire Size | 12 |
| Terminal Block Min Wire Size | 26 |
| Terminal Block Connection Method | Push-in Connection |
| Jumper Pitch | 5.2 mm |
| Terminal Block Amperage | 24 Amp |
| Jumper Number of Positions | 1 |
| Manufacturer | Phoenix Contact |
| Component | Plug |
| Component | Terminal plug |
