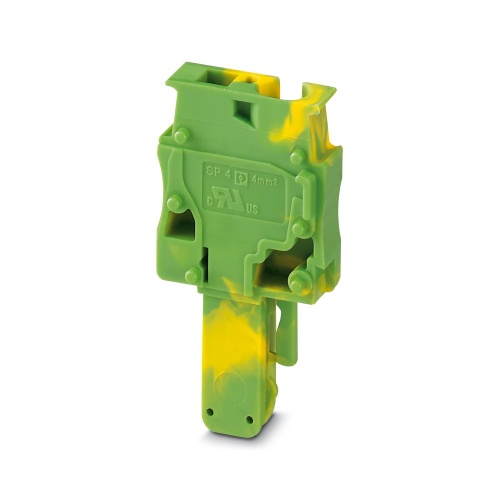

Phoenix Contact 3042803 Plug SP 4/ 1-M GNYE
Normally In Stock
Code: 63979
Phoenix 3042803 Terminal Plug Spring-cage connection 800 V 32 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.18
Sale Price
$2.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042803 The device has a plug with specifications such as a voltage rating of 800 V and a nominal current capacity of 32 A, featuring a spring-cage connection type and a rated cross-sectional area of 4 mm2, while its actual cross-sectional area can vary from 0.08 to 6 mm2, distinguished by a green-yellow color scheme.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Terminal Block Component Color
Green/Yellow
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Downloads
Phoenix 3042803 CAD data International.dxfPhoenix 3042803 CAD data International.pdfPhoenix 3042803 CAD data International.stpPhoenix 3042803 Data Sheet English.pdfPhoenix 3042803 Manufacturers declaration International.pdfPhoenix 3042803 Safety note English.pdfPhoenix 3042803 Tender Text English.zip
