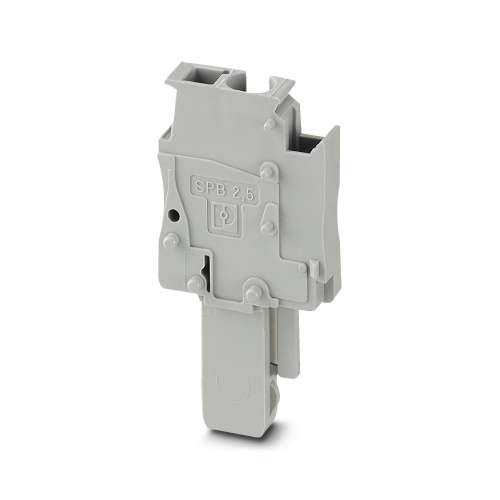

Phoenix Contact 3043161 Plug SPB 2,5/ 1-R
Normally In Stock
Code: 63955
Phoenix 3043161 Terminal Plug Spring-cage connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.17
Sale Price
$1.81
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3043161 The plug features a spring-cage connection and is rated for a voltage of 500 V with a nominal current capacity of 24 A, accommodating various cross-sectional areas between 0.08 to 4 mm², while its external dimensions are characterized by a rectangular outline approximately 2.5 mm² in size and a distinctive gray coloration.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Plug with bridging option, for use with basic terminal blocks
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Downloads
Phoenix 3043161 CAD data International.dxfPhoenix 3043161 CAD data International.pdfPhoenix 3043161 CAD data International.stpPhoenix 3043161 Data Sheet English-2.pdfPhoenix 3043161 Data Sheet English.pdfPhoenix 3043161 Manufacturers declaration International.pdfPhoenix 3043161 Safety note English.pdfPhoenix 3043161 Tender Text English.zip
