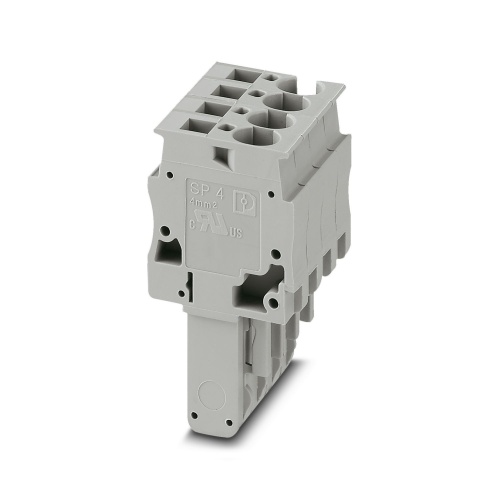

Phoenix Contact 3042926 Plug SP 4/ 4
Normally In Stock
Code: 63954
Phoenix 3042926 Terminal Plug Spring-cage connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$9.77
Sale Price
$8.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042926 The product specifications include a nominal voltage of 800 V, with an associated current capacity of 32 A, accommodating four different positions for connections using a spring-cage method. The rated cross-sectional area ranges from 0.08 mm2 to 6 mm2 and is characterized by a standard dimension of 4 mm2, with the product available in gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
24.8 mm
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
4
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
Practical coding option
Tested for railway applications
Downloads
Phoenix 3042926 CAD data International.dxfPhoenix 3042926 CAD data International.pdfPhoenix 3042926 CAD data International.stpPhoenix 3042926 Data Sheet English.pdfPhoenix 3042926 Manufacturers declaration International.pdfPhoenix 3042926 Safety note English.pdfPhoenix 3042926 Tender Text English.zip
