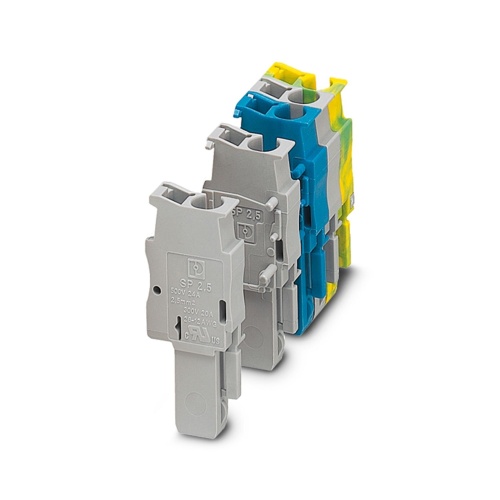

Phoenix Contact 3043051 Plug SP 2,5/ 1-M BU
Normally In Stock
Code: 63951
Phoenix 3043051 Terminal Plug Spring-cage connection 500 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.05
Sale Price
$1.71
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3043051 The specified cable features a spring-cage connection and is rated for 500V voltage with a nominal current of 24A, supporting up to 4mm2 cross-sectional area while its overall diameter ranges between 0.08mm2 and 2.5mm2, and it has a blue color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Blue
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Downloads
Phoenix 3043051 CAD data International.dxfPhoenix 3043051 CAD data International.pdfPhoenix 3043051 CAD data International.stpPhoenix 3043051 Data Sheet English-2.pdfPhoenix 3043051 Data Sheet English.pdfPhoenix 3043051 Manufacturers declaration International-2.pdfPhoenix 3043051 Manufacturers declaration International.pdfPhoenix 3043051 Safety note English.pdfPhoenix 3043051 Tender Text English.zip
Code: 63951
Phoenix Contact 3043051 Plug SP 2,5/ 1-M BU
$2.05
Sale Price
$1.71
MUST BUY IN PACKS OF 50
