Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

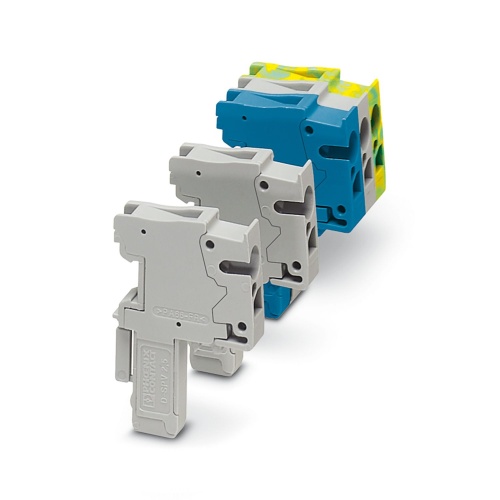

Phoenix Contact 3041095 Plug SPV 2,5/ 1-R BU
Normally In Stock
Code: 63950
Phoenix 3041095 Terminal Plug Spring-cage connection 500 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.99
Sale Price
$1.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3041095 A cable with a rated voltage of 500 V has a nominal current capacity of 24 A and is designed to accommodate only one position of attachment, utilizing a spring-cage connection mechanism for secure fastening. The cable's cross-sectional area ranges from 0.08 mm2 to 4 mm2, while its outer diameter is specified as 2.5 mm, with the outer diameter ranging between 0.08 mm2 and 4 mm2. Additionally, the color of this cable is blue.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Blue
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features

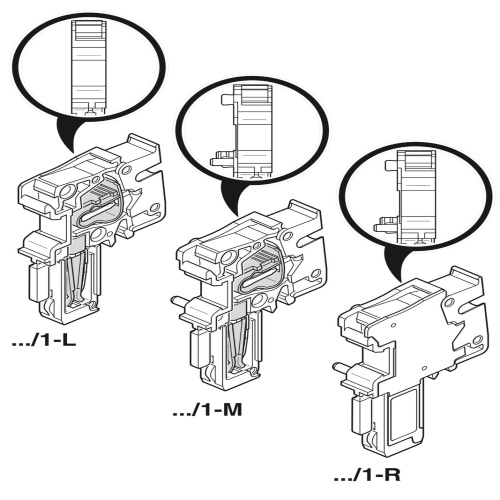

Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
