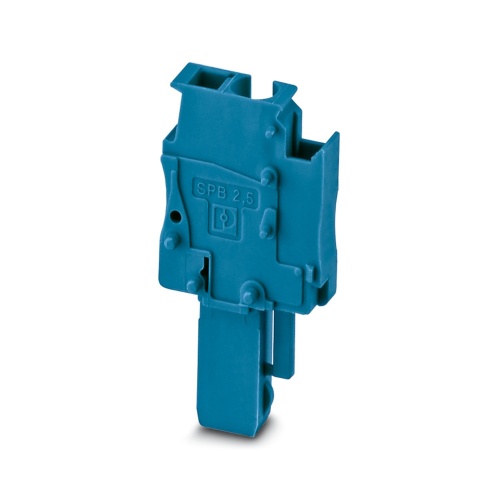

Phoenix Contact 3043174 Plug SPB 2,5/ 1-R BU
Normally In Stock
Code: 63942
Phoenix 3043174 Terminal Plug Spring-cage connection 500 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.98
Sale Price
$1.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3043174 The product specifications include a plug with a voltage rating of 500 V and a nominal current capacity of 24 A, suitable for single-position connections utilizing a spring-cage connection method. The rated cross-sectional area is 2.5 mm², while the actual cross-sectional area can vary between 0.08 mm² and 4 mm², and it features a blue color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Blue
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Plug with bridging option, for use with basic terminal blocks
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Downloads
Phoenix 3043174 CAD data International.dxfPhoenix 3043174 CAD data International.pdfPhoenix 3043174 CAD data International.stpPhoenix 3043174 Data Sheet English-2.pdfPhoenix 3043174 Data Sheet English.pdfPhoenix 3043174 Manufacturers declaration International.pdfPhoenix 3043174 Safety note English.pdfPhoenix 3043174 Tender Text English.zip
