Code: 63903

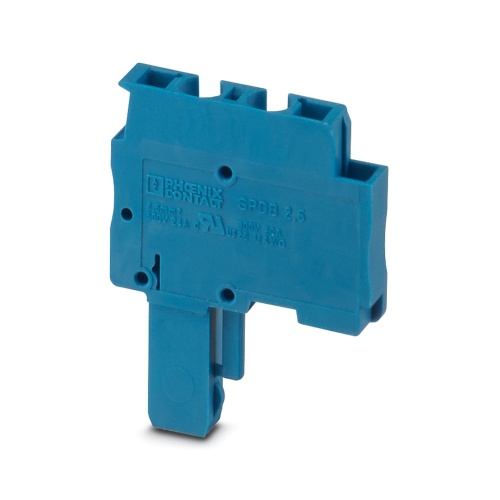

Phoenix Contact 3040737 Plug SPDB 2,5/ 1 BU
Normally In Stock
Phoenix 3040737 Terminal Plug Spring-cage connection 500 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.95
Sale Price
$3.29
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3040737 The plug features a voltage rating of 500 V and a nominal current capacity of 24 A, is designed for single-position use, and utilizes a spring-cage connection method, with a minimum rated cross-sectional area of 0.08 mm2 and a maximum range of 2.5-4 mm2, distinguished by its blue color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Blue
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Plug with bridging option, for use with basic terminal blocks
Tested for railway applications
Downloads
Phoenix 3040737 CAD data International.dxfPhoenix 3040737 CAD data International.pdfPhoenix 3040737 CAD data International.stpPhoenix 3040737 Data Sheet English.pdfPhoenix 3040737 Manufacturers declaration International.pdfPhoenix 3040737 Safety note English.pdfPhoenix 3040737 Tender Text English.zip
