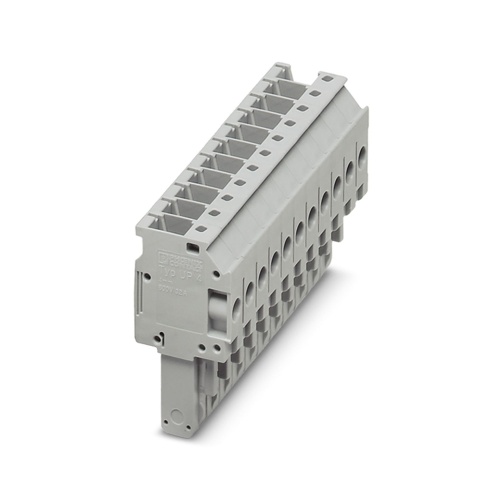

Phoenix Contact 3060212 Plug UP 4/11
Normally In Stock
Code: 63894
Phoenix 3060212 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$18.07
Sale Price
$15.06
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060212 The specifications for this plug include a voltage rating of 800 V and a nominal current capacity of 32 A, with 11 positions available for connections. The connection method is screw-based and features a rated cross-sectional area of 4 mm², spanning from 0.2 mm² to 6 mm². Additionally, the plug has a distinctive gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Terminal Block Width
68.2 mm
Jumper Number of Positions
11
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Screw actuation from the side
Conductor connection from above
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Downloads
Phoenix 3060212 CAD data International.dxfPhoenix 3060212 CAD data International.pdfPhoenix 3060212 CAD data International.stpPhoenix 3060212 Manufacturers declaration English.pdfPhoenix 3060212 Manufacturers declaration International.pdfPhoenix 3060212 Safety note English.pdfPhoenix 3060212 Tender Text English.zip
