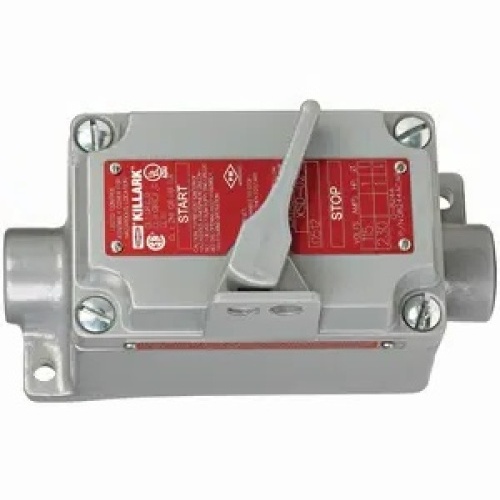

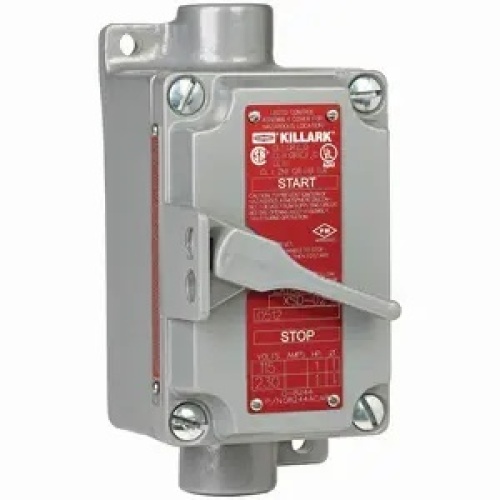

Killark XSD-11 NEMA Manual Starter - Single Pole, 1 HP
Normally In Stock
Code: 638770
Killark XSD-11 - XSD Series, AL Dead-End Single Gang 1-Pole, Single Phase Manual Motor Starting Switch Unit, With Overload Protection, Hub Size 1/2" - Class I, Divisions 1 & 2, Groups C, D - Class I, Zones 1 & 2, Groups IIB, IIA - Class II, Divisions 1 & 2, Groups E, F, G - Class III, Divisions 1 & 2
Condition: New
Usually ships Same Day or Next Day$1045.13
Sale Price
$870.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark XSD-11 - Motor running protection when overload heaters are used.Enclosures are cast copper-free aluminum alloy.Operating shaft is stainless steel.Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.Ground flange joint between bolted cover and box provide required flame path.Provisions for padlocking switch in either “ON” or ”OFF” position is standard. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Provisions for padlocking switch in either "ON" or "OFF" position is standard.
Specifications
Starter Poles
Single Pole
Component
NEMA Manual Starter
Starter HP
1 HP
Starter Maximum Voltage
230 VAC
Manufacturer
Killark
Features
Motor running protection when overload heaters are used.
Enclosures are cast copper-free aluminum alloy.
Operating shaft is stainless steel.
Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
Ground flange joint between bolted cover and box provide required flame path.
Provisions for padlocking switch in either “ON” or ”OFF” position is standard.
