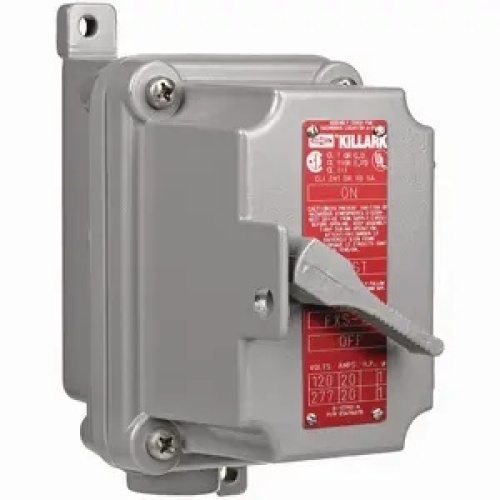

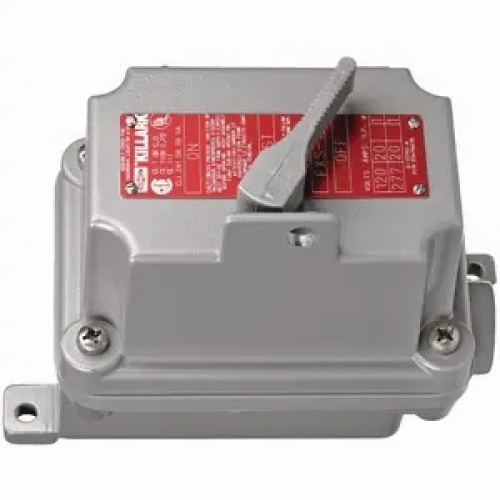

Killark FXSD41 NEMA Manual Starter - Single Pole, 1 HP, NEMA 3
Normally In Stock
Code: 638749
Killark FXSD41 - FXSD Series, AL Feed-Thru Single Gang 1-Pole, Single Phase Manual Motor Starting Switch Unit - With Overload Protection - Hub Size 1/2" - Class I, Divisions 1 & 2, Groups C, D - Class I, Zones 1 & 2, Groups IIB, IIA - Class II, Divisions 1 & 2, Groups E, F, G - Class III, Divisions 1 & 2
Condition: New
Usually ships Same Day or Next Day$1266.28
Sale Price
$1055.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark FXSD41 - Motor running protection when overload heaters are used.Factory Sealed so no external seals are required.Type 3 (raintight) rated.Enclosures are cast copper-free aluminum alloy.Operating shaft is stainless steel.Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.Ground flange joint between bolted cover and box provide required flame path.Provisions for padlocking switch in either “ON” or ”OFF” position is standard. Killark's FXSD/FXSX Series of Factory Sealed Hazardous Location Manual Motor Starting Switches provide manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Standard motor rated switch configurations include Square D Type F with Overload Protection (FXSD Series) and Square D Type K (FXSX Series). Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Specifications
Starter Poles
Single Pole
Component
NEMA Manual Starter
Starter HP
1 HP
Starter Maximum Voltage
230 VAC
Starter Enclosure Type
NEMA 3
Manufacturer
Killark
Features
FXSX-FXSD Series require no external seals (factory sealed) and are NEMA 3 (raintight) rated
Enclosures are cast copper-free aluminum alloy
Operating shaft is stainless steel
Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request
Ground flange joint between bolted cover and box provide required flame path
Provisions for padlocking switch in either “ON” or ”OFF” position is standard
