Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 63850
Phoenix Contact 3041105 Plug SPV 2,5/ 1-R GNYE
Normally In Stock
Phoenix 3041105 Terminal Plug Spring-cage connection 500 V 24 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.99
Sale Price
$1.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3041105 This connector has a rated voltage of 500 V and can handle a nominal current of 24 A, making it suitable for high-power applications. It features a single connection position secured by spring-cage connectors and comes in various cross-sectional sizes ranging from 0.08 mm2 to 4 mm2, with the standard size being 2.5 mm2. The cable is also color-coded green-yellow.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Terminal Block Component Color
Green/Yellow
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features

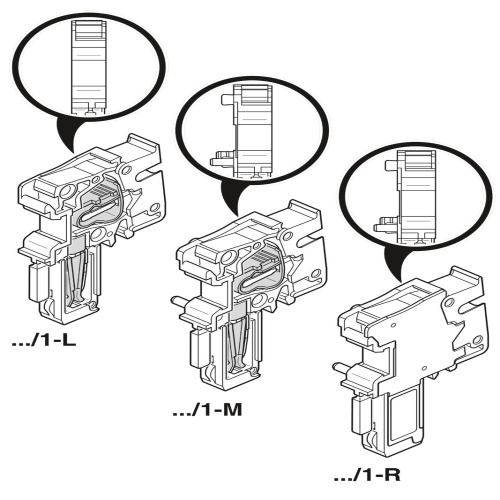

Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
