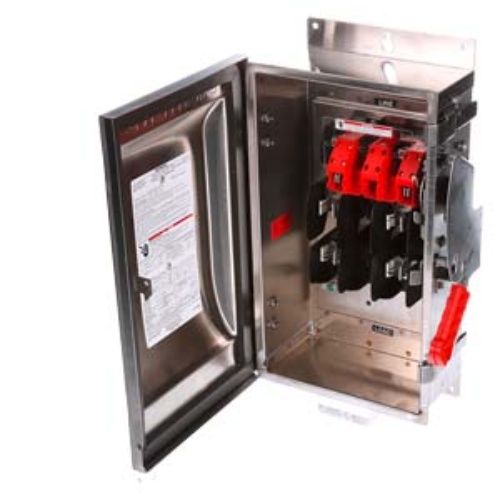

Siemens HF321S Fusible Heavy Duty Safety Switch - 30 Amp, 240 VAC, Three Pole, NEMA 4X
Normally In Stock
Code: 638423
Siemens HF321S Fusible Heavy Duty Safety Switch - 30 Amp, 240 VAC, Three Pole, NEMA 4X - 20.3" x 15.6" x 6.8" (LxWxH)
Condition: New
Usually ships Same Day or Next Day$1720.70
Sale Price
$1433.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Siemens HF321S Fusible Heavy Duty Safety Switch - 30 Amp, 240 VAC, Three Pole, NEMA 4X - 20.3" x 15.6" x 6.8" (LxWxH)
Specifications
Poles
Three Pole
Voltage
240 VAC
Enclosure NEMA Rating
NEMA 4X
Component
Fusible Disconnect Switch
Current
30 Amp
Manufacturer
Siemens
Enclosure Disconnect Type
Heavy Duty Safety Switch
Features
Heavy Duty Safety Switches are available in 30 -1200 A ratings, in Type 1, 3R, 12 and 4X enclosures and in 2, 3, 4 and 6 pole versions.
Fusible models are available for either 240 V AC max. or 600 V AC or 600 V DC applications. Non-fusible versions are available in 600 V AC max ratings and can be used on any AC voltage through 600 V AC.
Fusible versions accept Class H fuses as standard in 30-600 A ratings and can be converted to Class R fusing only with a field installed kit. 600 V rated fusible switches in 30-600 A ratings can be converted to accept Class J fuses by simply moving their load base. 800 and 1200 A fusible switches accept Class L fuses.
All accept aux contact kits. Neutrals are either factory installed or can be field added. All are UL98 listed (rotary switches are UL508 listed and solar disconnects are listed as UL1741 PV switches).
