Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

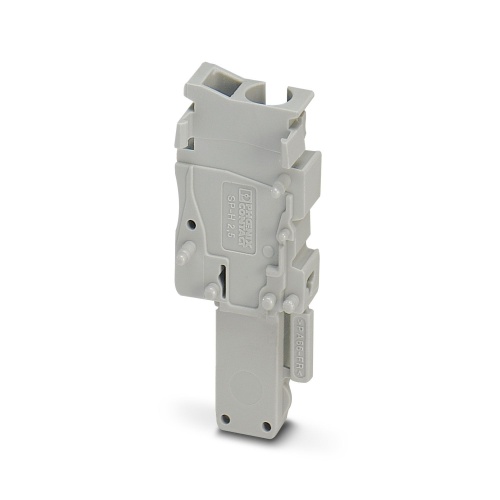

Phoenix Contact 3210842 Plug SP-H 2,5/ 1-R
Normally In Stock
Code: 63790
Phoenix 3210842 Terminal Plug Spring-cage connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2.81
Sale Price
$2.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210842 The plug's specifications include a voltage rating of 500 V and a nominal current capacity of 24 A, accommodating a single position with a spring-cage connection system; its rated cross-sectional area is 2.5 mm2 but can vary between 0.08 mm2 to 4 mm2 in terms of actual cross-section, and it has a gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features

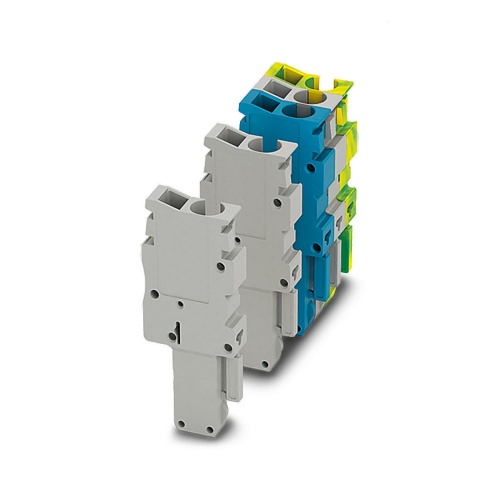

Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
