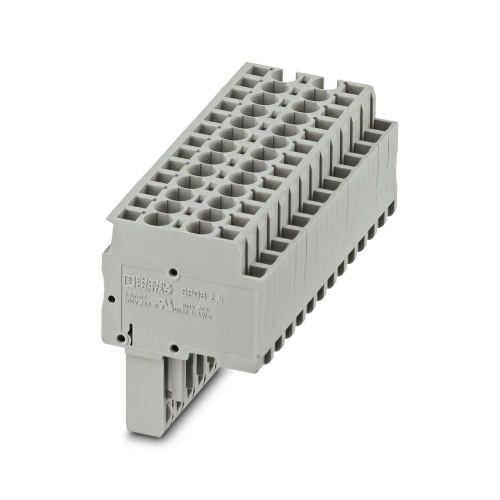

Phoenix Contact 3040520 Plug SPDB 2,5/13
Normally In Stock
Code: 63777
Phoenix 3040520 Terminal Plug Spring-cage connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$60.43
Sale Price
$50.36
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3040520 The specified plug has a voltage rating of 500 V and can handle a maximum nominal current of 24 A. It features 13 positions for connections and utilizes a spring-cage connection method. The rated cross-sectional area is 2.5 mm², with the actual cross-section varying between 0.08 mm² to 4 mm². Additionally, the plug has a gray color designation.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Terminal Block Width
67.6 mm
Jumper Number of Positions
13
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Plug with bridging option, for use with basic terminal blocks
Tested for railway applications
Downloads
Phoenix 3040520 CAD data International.dxfPhoenix 3040520 CAD data International.pdfPhoenix 3040520 CAD data International.stpPhoenix 3040520 Data Sheet English.pdfPhoenix 3040520 Manufacturers declaration International.pdfPhoenix 3040520 Safety note English.pdfPhoenix 3040520 Tender Text English.zip
