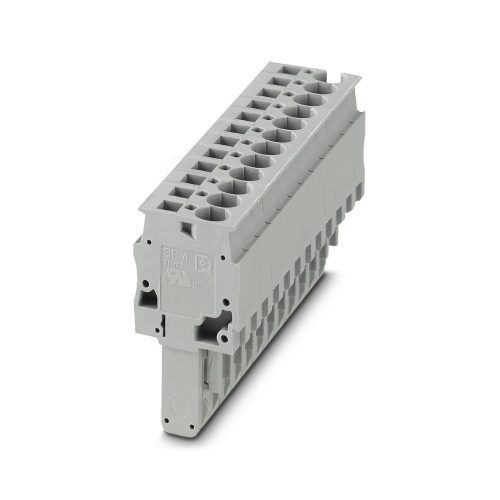

Phoenix Contact 3043006 Plug SP 4/12
Normally In Stock
Code: 63759
Phoenix 3043006 Terminal Plug Spring-cage connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$24.67
Sale Price
$20.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3043006 The plug's specifications include a voltage rating of 800V and a nominal current capacity of 32A, allowing for up to 12 positions of connection. The connection method is a spring-cage design, with a rated cross-sectional area of 4mm². However, the actual cross-sectional area can range from 0.08mm² to 6mm², and it's colored gray.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Terminal Block Width
74.4 mm
Jumper Number of Positions
12
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
Practical coding option
Tested for railway applications
Downloads
Phoenix 3043006 CAD data International.dxfPhoenix 3043006 CAD data International.pdfPhoenix 3043006 CAD data International.stpPhoenix 3043006 Data Sheet English.pdfPhoenix 3043006 Manufacturers declaration International.pdfPhoenix 3043006 Safety note English.pdfPhoenix 3043006 Tender Text English.zip
