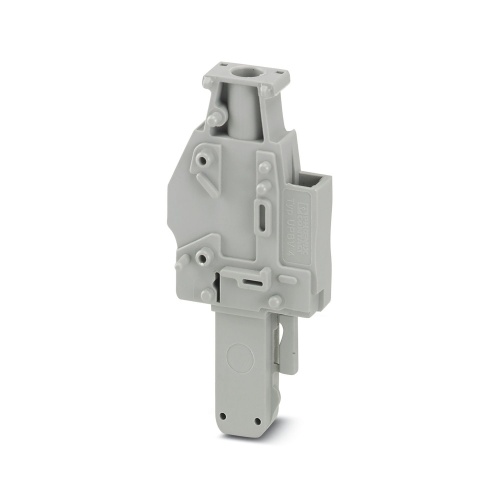

Phoenix Contact 3045745 Plug UPBV 4/ 1-M
Normally In Stock
Code: 63755
Phoenix 3045745 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.41
Sale Price
$2.01
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045745 The device has a single position for screw-type connections with a rated cross-section of 4mm2, and the actual cross-sectional area can range from 0.14mm2 to 6mm2, while it is designed to handle a maximum voltage of 800V and current of up to 32A, with a gray color characteristic.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Can be bridged with FBS ... standard bridges
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The plugs are assembled directly on site by snapping together 1-position plug elements
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045745 CAD data International.dxfPhoenix 3045745 CAD data International.pdfPhoenix 3045745 CAD data International.stpPhoenix 3045745 Manufacturers declaration English.pdfPhoenix 3045745 Manufacturers declaration International.pdfPhoenix 3045745 Safety note English.pdfPhoenix 3045745 Tender Text English.zip
