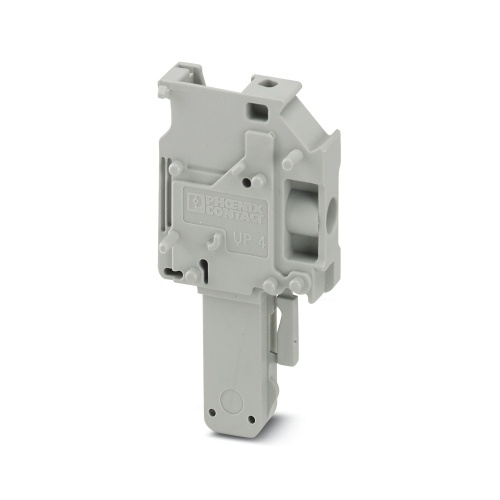

Phoenix Contact 3060089 Plug UP 4/ 1-R
Normally In Stock
Code: 63746
Phoenix 3060089 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.33
Sale Price
$1.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060089 The given electrical plug has specific details that describe its characteristics. It features a nominal voltage rating of 800V and a maximum current capacity of 32A. The plug is designed to fit into one position, secured through a screw connection. Its rated cross-sectional area is 4mm2, with a minimum cross-sectional area of 0.2mm2 and a maximum of 6mm2. The overall design and coloration of the plug are gray in color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The plugs are assembled directly on site by snapping together 1-position plug elements
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Downloads
Phoenix 3060089 CAD data International.dxfPhoenix 3060089 CAD data International.pdfPhoenix 3060089 CAD data International.stpPhoenix 3060089 Manufacturers declaration English.pdfPhoenix 3060089 Manufacturers declaration International.pdfPhoenix 3060089 Safety note English.pdfPhoenix 3060089 Tender Text English.zip
