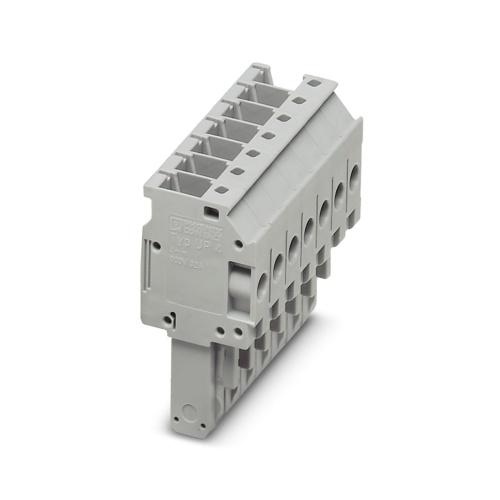

Phoenix Contact 3060173 Plug UP 4/ 7
Normally In Stock
Code: 63744
Phoenix 3060173 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$12.49
Sale Price
$10.41
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060173 The plug features a nominal voltage of 800 volts and a maximum current rating of 32 amps, allowing it to be connected to a wide range of power sources with varying cross-sectional sizes between 0.2 mm2 and 6 mm2, and is secured in place through screw connections, while its casing has a distinctive gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Terminal Block Width
43.4 mm
Jumper Number of Positions
7
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Screw actuation from the side
Conductor connection from above
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Downloads
Phoenix 3060173 CAD data International.dxfPhoenix 3060173 CAD data International.pdfPhoenix 3060173 CAD data International.stpPhoenix 3060173 Manufacturers declaration English.pdfPhoenix 3060173 Manufacturers declaration International.pdfPhoenix 3060173 Safety note English.pdfPhoenix 3060173 Tender Text English.zip
