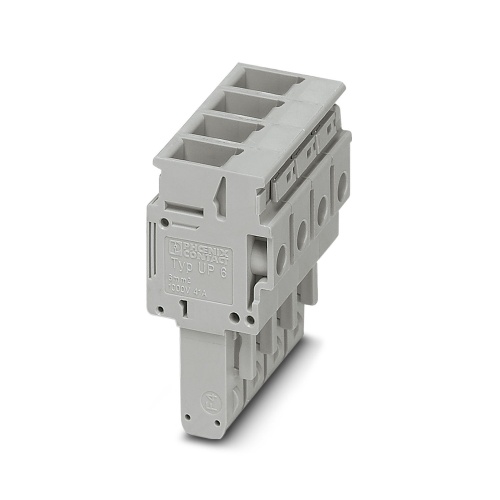

Phoenix Contact 3060649 Plug UP 6/ 4
Normally In Stock
Code: 63724
Phoenix 3060649 Terminal Plug Screw connection 1000 V 41 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$11.20
Sale Price
$9.33
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060649 The plug features a high voltage rating of 1000V and is designed to handle a significant nominal current of 41A, with four positions for connections using a screw method of attachment. The rated cross-sectional area is 6mm², but can accommodate narrower or wider sections between 0.2mm² and 6mm², and has a distinctive gray color.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Amperage
41 Amp
Jumper Pitch
8.2 mm
Terminal Block Width
32.8 mm
Jumper Number of Positions
4
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Free choice of connection technology with uniformly designed COMBI plug-in zone
A nominal current of 41 A and a nominal voltage of 1,000 V can be realized with the powerful plug-in contact
Maximum safety with the touch-proof design
Protection against mismatching with individual coding options
Complete flexibility with connectors for self-assembly
Downloads
Phoenix 3060649 CAD data International.dxfPhoenix 3060649 CAD data International.pdfPhoenix 3060649 CAD data International.stpPhoenix 3060649 Manufacturers declaration English.pdfPhoenix 3060649 Manufacturers declaration International.pdfPhoenix 3060649 Safety note English.pdfPhoenix 3060649 Tender Text English.zip
