Code: 63701

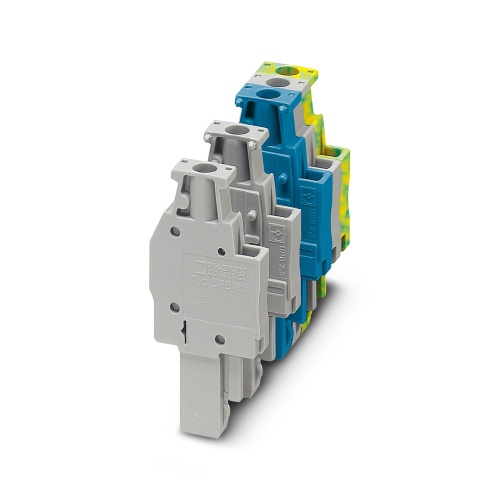

Phoenix Contact 3045363 Plug UPBV 2,5/ 1-M GNYE
Normally In Stock
Phoenix 3045363 Terminal Plug Screw connection 500 V 24 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.43
Sale Price
$1.19
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045363 The product has a voltage rating of 500V and can handle a nominal current of 24A, with a single screw connection point for ease of installation. The cable's cross-sectional area ranges from 0.14mm² to 4mm², allowing for various applications, while its outer diameter is 2.5mm², identified by a green-yellow color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Terminal Block Component Color
Green/Yellow
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Can be bridged with FBS ... standard bridges
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The plugs are assembled directly on site by snapping together 1-position plug elements
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045363 CAD data International.dxfPhoenix 3045363 CAD data International.pdfPhoenix 3045363 CAD data International.stpPhoenix 3045363 Manufacturers declaration English.pdfPhoenix 3045363 Manufacturers declaration International.pdfPhoenix 3045363 Safety note English.pdfPhoenix 3045363 Tender Text English.zip
