Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

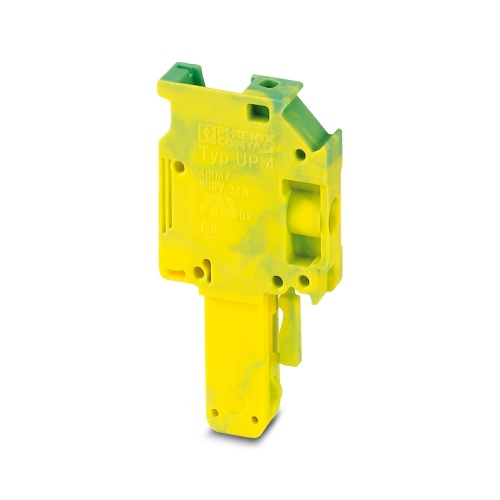

Phoenix Contact 3060047 Plug UP 4/ 1-L GNYE
Normally In Stock
Code: 63671
Phoenix 3060047 Terminal Plug Screw connection 800 V 32 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.33
Sale Price
$1.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060047 The specified plug has a voltage rating of 800 V and a nominal current capacity of 32 A, accommodating single-position connections via screw fastening with a cross-sectional area ranging from 0.2 to 6 mm2. The rated cross-section is 4 mm2, and the color is green-yellow.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Terminal Block Component Color
Green/Yellow
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features

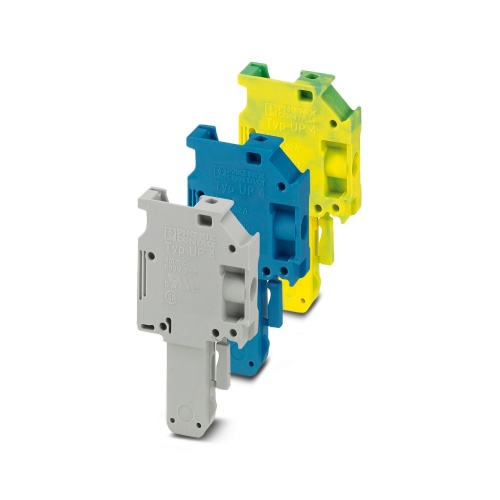

The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The plugs are assembled directly on site by snapping together 1-position plug elements
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Downloads
Phoenix 3060047 CAD data International.dxfPhoenix 3060047 CAD data International.pdfPhoenix 3060047 CAD data International.stpPhoenix 3060047 Manufacturers declaration English.pdfPhoenix 3060047 Manufacturers declaration International.pdfPhoenix 3060047 Safety note English.pdfPhoenix 3060047 Tender Text English.zip

Code: 63671
Phoenix Contact 3060047 Plug UP 4/ 1-L GNYE
$2.33
Sale Price
$1.94
MUST BUY IN PACKS OF 50
