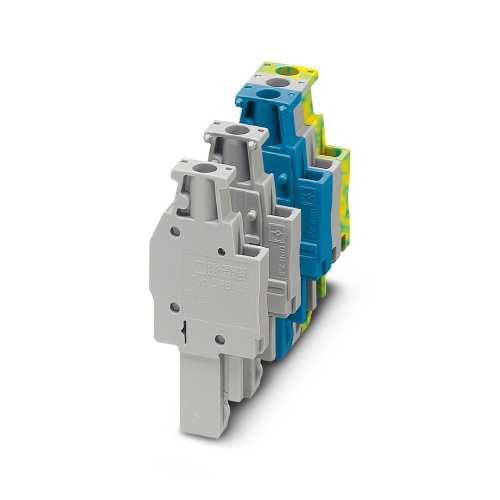

Phoenix Contact 3045347 Plug UPBV 2,5/ 1-M
Normally In Stock
Code: 63664
Phoenix 3045347 Terminal Plug Screw connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.43
Sale Price
$1.19
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045347 The plug features a 500V voltage rating and a nominal current capacity of 24A, accommodating only one position for connection, secured via screw connection, with a 2.5mm2 rated cross-sectional area that spans from 0.14mm2 to 4mm2, and has a distinctive gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Can be bridged with FBS ... standard bridges
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The plugs are assembled directly on site by snapping together 1-position plug elements
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045347 CAD data International.dxfPhoenix 3045347 CAD data International.pdfPhoenix 3045347 CAD data International.stpPhoenix 3045347 Manufacturers declaration English.pdfPhoenix 3045347 Manufacturers declaration International.pdfPhoenix 3045347 Safety note English.pdfPhoenix 3045347 Tender Text English.zip
