Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

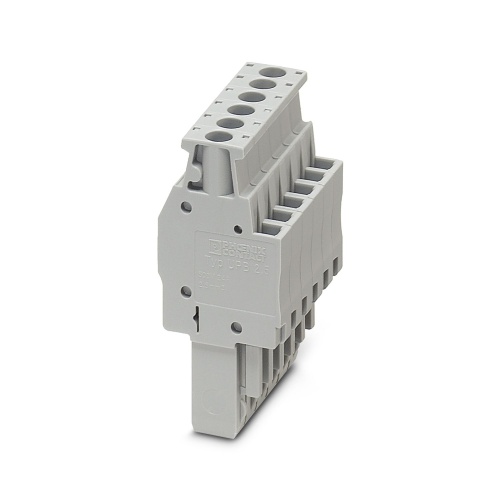

Phoenix Contact 3001367 Plug UPBV 2,5/16
Normally In Stock
Code: 63629
Phoenix 3001367 Terminal Plug Screw connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$16.87
Sale Price
$14.06
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3001367 The product features a plug with a nominal voltage rating of 500 V and a maximum current capacity of 24 A, accommodating up to 16 connections using a screw-based connection system, with a rated cross-sectional area of 2.5 mm² and a minimum/maximal cross-sectional area of 0.14 mm²-4 mm², distinguished by its gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Terminal Block Width
82.4 mm
Jumper Number of Positions
16
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Can be bridged with FBS ... standard bridges
Large-surface labeling option
Practical coding option
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3001367 CAD data International.dxfPhoenix 3001367 CAD data International.pdfPhoenix 3001367 CAD data International.stpPhoenix 3001367 Manufacturers declaration English.pdfPhoenix 3001367 Manufacturers declaration International.pdfPhoenix 3001367 Safety note English.pdfPhoenix 3001367 Tender Text English.zip
