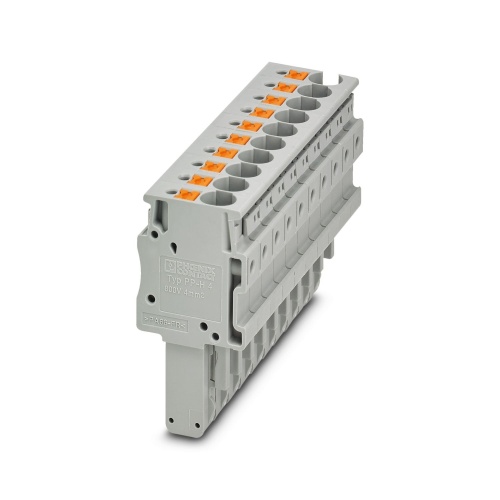

Phoenix Contact 3212067 Plug PP-H 4/10
Normally In Stock
Code: 63615
PP-H 4/10 Phoenix 3212067 Terminal Plug Push-in / plug connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$28.82
Sale Price
$24.02
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212067 The plug features an 800V voltage rating and a nominal current capacity of 32A, with 10 connections available and 10 corresponding positions for secure fitting. The connections are made via push-in method and have a cross-sectional area ranging from 0.2mm² to 6mm², while the first connection on the left side has a smaller cross-section of 4mm², identified by a gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
10
Terminal Block Component Color
Gray
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Terminal Block Width
62 mm
Jumper Number of Positions
10
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
