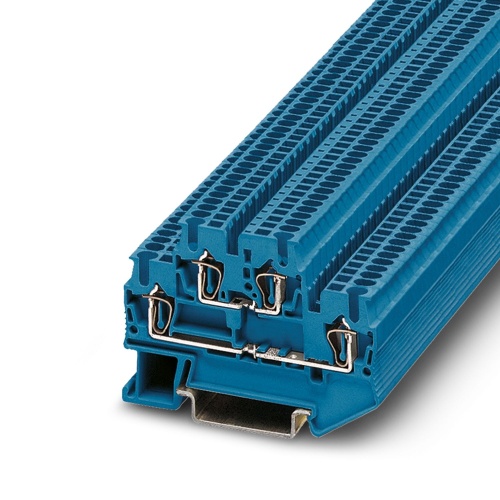

Phoenix Contact 3031160 Double-level spring-cage terminal block STTB 1,5 BU
Normally In Stock
Code: 63606
STTB 1,5 BU Phoenix 3031160 Multi-level terminal block Spring-cage connection 500 V 17.5 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.92
Sale Price
$2.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031160 The double-level spring-cage terminal block is designed for use with a nominal voltage of 500 V and a maximum current capacity of 17.5 A, featuring a spring-cage connection method for both the first and second levels, with an allowed cross-sectional area range of 0.08 mm2 to 1.5 mm2, suitable for mounting on NS 35/7.5 and NS 35/15 systems, and available in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Compact design for maximum space savings
Tested for railway applications
Connect the levels using FBS ...-PV bridges
Downloads
Phoenix 3031160 CAD data International.dxfPhoenix 3031160 CAD data International.pdfPhoenix 3031160 CAD data International.stpPhoenix 3031160 Certification English-2.pdfPhoenix 3031160 Data Sheet English.pdfPhoenix 3031160 Manufacturers declaration International-2.pdfPhoenix 3031160 Manufacturers declaration International.pdfPhoenix 3031160 Safety note English.pdfPhoenix 3031160 Tender Text English.zipPhoenix 3031160 User instructions for the Ex Area International.pdf
