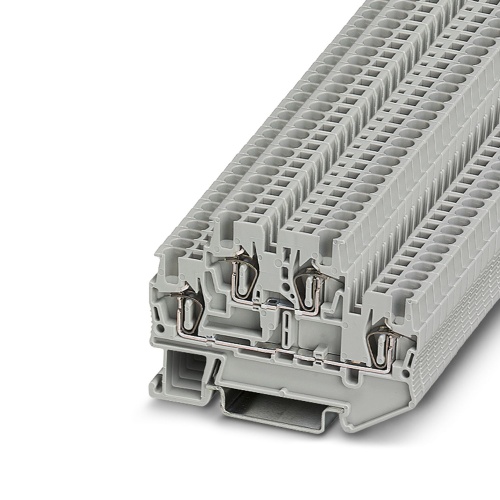

Phoenix Contact 3031157 Double-level spring-cage terminal block STTB 1,5
Normally In Stock
Code: 63605
STTB 1,5 Phoenix 3031157 Multi-level terminal block Spring-cage connection 500 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.92
Sale Price
$2.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031157 A double-level spring-cage terminal block features a nominal voltage of 500 V and an nominal current rating of 17.5 A, utilizing a spring-cage connection for the first and second levels, with rated cross-sectional areas ranging from 0.08 mm2 to 1.5 mm2 and is mounted using NS 35/7,5 or NS 35/15 standards in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Compact design for maximum space savings
Tested for railway applications
Connect the levels using FBS ...-PV bridges
Downloads
Phoenix 3031157 CAD data International.dxfPhoenix 3031157 CAD data International.pdfPhoenix 3031157 CAD data International.stpPhoenix 3031157 Certification English-2.pdfPhoenix 3031157 Data Sheet English.pdfPhoenix 3031157 Manufacturers declaration International-2.pdfPhoenix 3031157 Manufacturers declaration International.pdfPhoenix 3031157 Safety note English.pdfPhoenix 3031157 Tender Text English.zipPhoenix 3031157 User instructions for the Ex Area International.pdf
