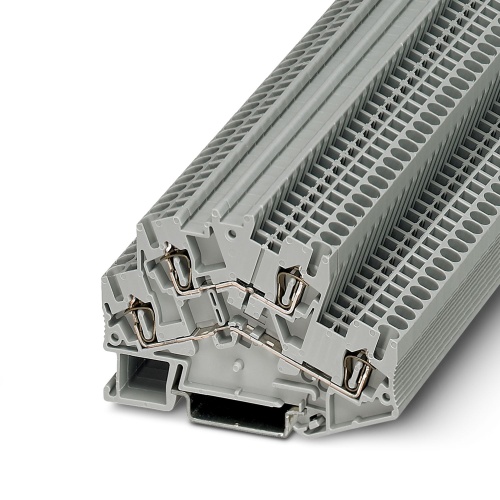

Phoenix Contact 3038464 Double-level spring-cage terminal block STTBS 2,5
Normally In Stock
Code: 63602
STTBS 2,5 Phoenix 3038464 Multi-level terminal block Spring-cage connection 500 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$6.06
Sale Price
$5.05
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038464 A double-level spring-cage terminal block with a nominal voltage of 500 V and a nominal current of 22 A features a spring-cage connection method for both the first and second levels. The rated cross-sectional area is 2.5 mm², but can vary between 0.08 mm² to 4 mm². Mounting types include NS 35/7,5 and NS 35/15, while the terminal block's color is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Two large-surface labeling options
Downloads
Phoenix 3038464 CAD data International.dxfPhoenix 3038464 CAD data International.pdfPhoenix 3038464 CAD data International.stpPhoenix 3038464 Certification English.pdfPhoenix 3038464 Certification International.pdfPhoenix 3038464 Data Sheet English.pdfPhoenix 3038464 Manufacturers declaration International.pdfPhoenix 3038464 Safety note English.pdfPhoenix 3038464 Tender Text English.zipPhoenix 3038464 User instructions for the Ex Area English.pdf
