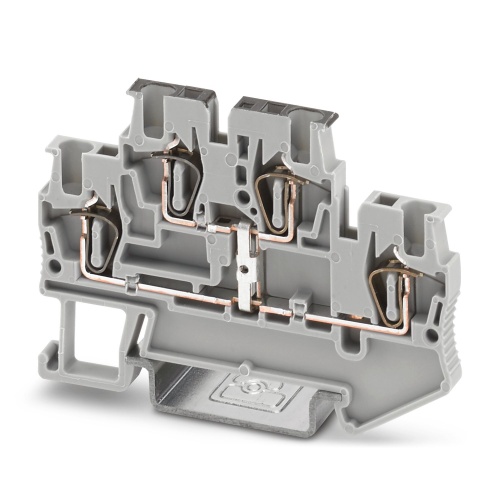

Phoenix Contact 3031526 Double-level spring-cage terminal block STTB 1,5-PV
Normally In Stock
Code: 63600
STTB 1,5-PV Phoenix 3031526 Multi-level terminal block Spring-cage connection 500 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$8.27
Sale Price
$6.89
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

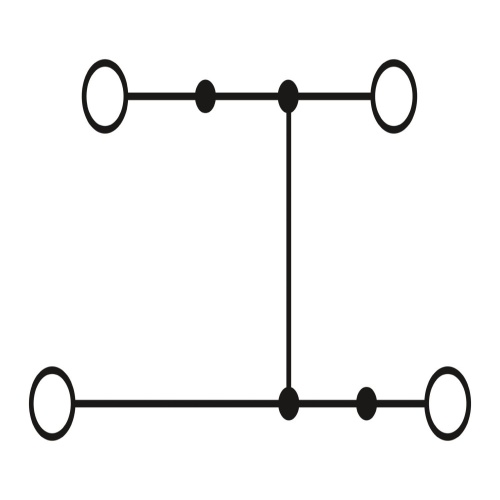

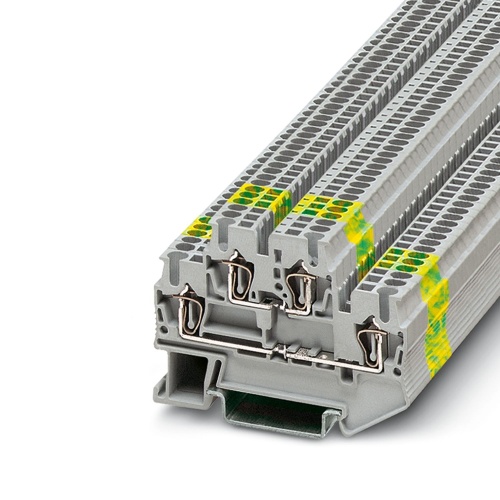

Phoenix Contact 3031526 The terminal block features a double-level spring-cage design with an equipotential bonder and is rated for 500V of nominal voltage and up to 17.5A of nominal current. Connections are made via the spring-cage method on both levels. The cross-sectional area ranges from 0.08mm2 to 1.5mm2, while the mounting type includes NS35/7.5 and NS35/15 options, with a standard gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Compact design for maximum space savings
Connect the levels using FBS ...-PV bridges
Tested for railway applications
Downloads
Phoenix 3031526 CAD data International.dxfPhoenix 3031526 CAD data International.pdfPhoenix 3031526 CAD data International.stpPhoenix 3031526 Certification English-2.pdfPhoenix 3031526 Data Sheet English.pdfPhoenix 3031526 Manufacturers declaration International-2.pdfPhoenix 3031526 Manufacturers declaration International.pdfPhoenix 3031526 Safety note English.pdfPhoenix 3031526 Tender Text English.zipPhoenix 3031526 User instructions for the Ex Area International.pdf
