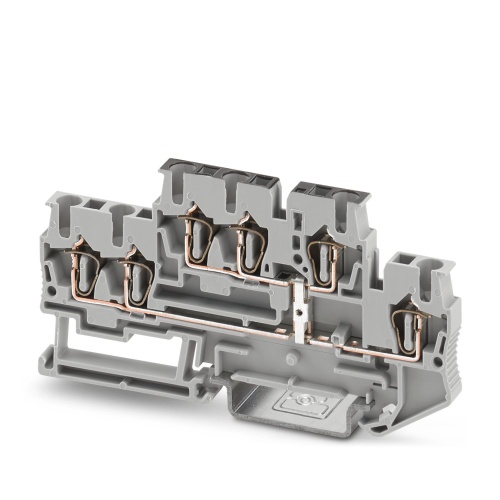

Phoenix Contact 3038545 Double-level terminal block STTB 2,5-TWIN-PV
Normally In Stock
Code: 63596
STTB 2,5-TWIN-PV Phoenix 3038545 Multi-level terminal block Spring-cage connection 500 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$10.81
Sale Price
$9.01
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

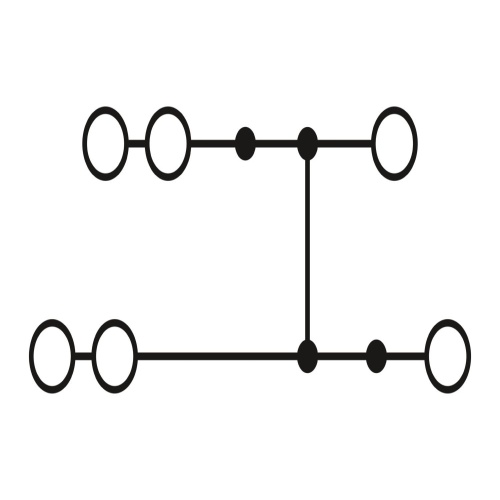

Phoenix Contact 3038545 A double-level terminal block features a spring-cage connection with an equipotential bonder, accommodating nominal voltages of 500 V and currents up to 22 A. The rated cross-section for the first level is 2.5 mm², while the range for the second level spans from 0.08 mm² to 4 mm². These blocks can be mounted using NS 35/7,5 or NS 35/15 types and have a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Terminal Block
Features
Compact design for maximum space savings
Tested for railway applications
Downloads
Phoenix 3038545 CAD data International.dxfPhoenix 3038545 CAD data International.pdfPhoenix 3038545 CAD data International.stpPhoenix 3038545 Data Sheet English.pdfPhoenix 3038545 Manufacturers declaration International.pdfPhoenix 3038545 Safety note English.pdfPhoenix 3038545 Tender Text English.zip
