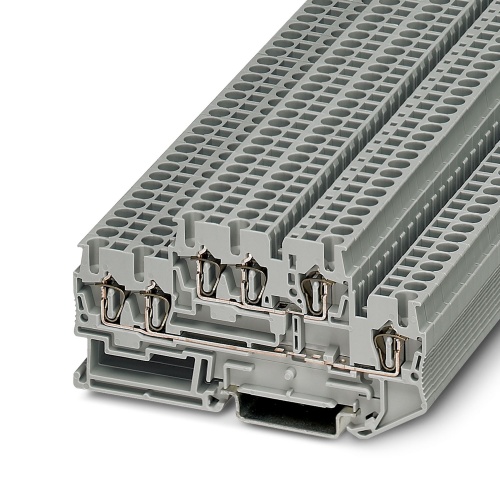

Phoenix Contact 3038516 Double-level spring-cage terminal block STTB 2,5-TWIN
Normally In Stock
Code: 63589
STTB 2,5-TWIN Phoenix 3038516 Multi-level terminal block Spring-cage connection 500 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.20
Sale Price
$6.00
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038516 A double-level spring-cage terminal block with a nominal voltage of 500 V and a nominal current capacity of 22 A is available. The connection method utilizes a spring-cage design for the first and second levels, allowing for flexible connections between different wires or circuits. The rated cross-sectional area of the terminals ranges from 0.08 mm² to 4 mm². This terminal block can be mounted using two standard mounting types: NS 35/7,5 and NS 35/15, with a color specification of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Compact design for maximum space savings
Corrosion-free terminal points
Low contact resistance
Tested for railway applications
Downloads
Phoenix 3038516 CAD data International.dxfPhoenix 3038516 CAD data International.pdfPhoenix 3038516 CAD data International.stpPhoenix 3038516 CAD data International.wrlPhoenix 3038516 Data Sheet English.pdfPhoenix 3038516 Manufacturers declaration International.pdfPhoenix 3038516 Product Information English.pdfPhoenix 3038516 Safety note English.pdfPhoenix 3038516 Tender Text English.zip
