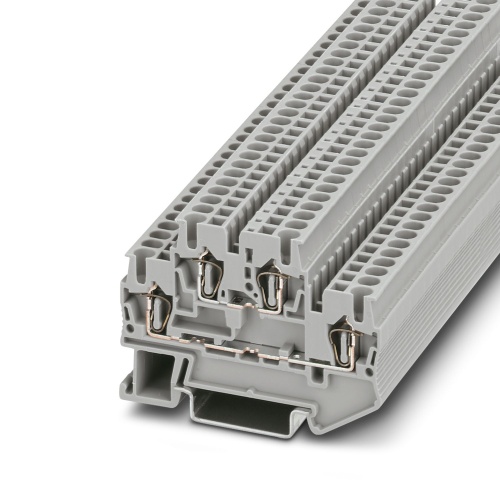

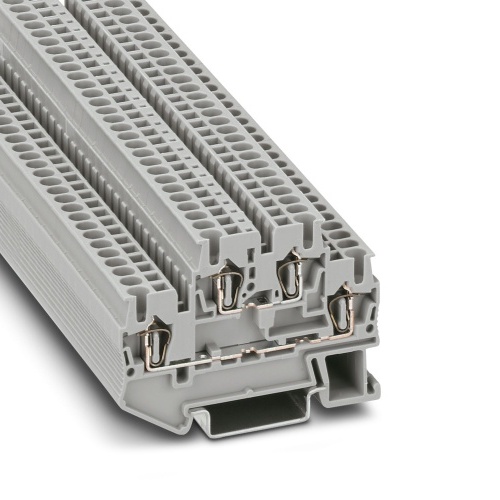

Phoenix Contact 3035519 Double-level spring-cage terminal block STTB 2,5-BE
Normally In Stock
Code: 63584
STTB 2,5-BE Phoenix 3035519 Multi-level terminal block Spring-cage connection 500 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.76
Sale Price
$3.13
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3035519 A double-level spring-cage terminal block is suitable for installing components that can be selected individually, with a nominal voltage of 500 V and a nominal current capacity of 22 A. The connection method employs a spring-cage design, allowing for flexibility in connections between the first and second levels. The rated cross-sectional area varies from 0.08 mm² to 4 mm², while the terminal block itself has a rating of 2.5 mm². Mounting options include NS 35/7.5 and NS 35/15, with an available color being gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
