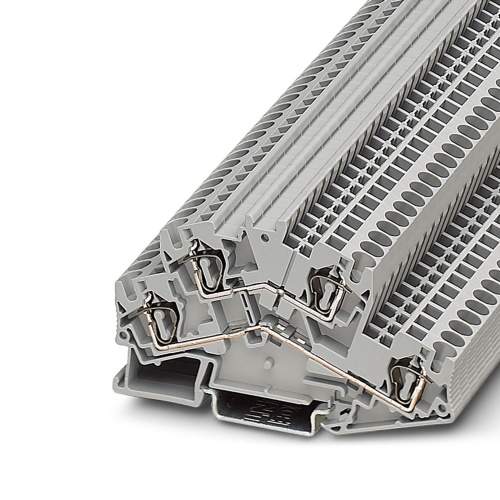

Phoenix Contact 3035056 Double-level spring-cage terminal block STTBS 4
Normally In Stock
Code: 63581
STTBS 4 Phoenix 3035056 Multi-level terminal block Spring-cage connection 500 V 28 Amp gray Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.92
Sale Price
$4.93
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3035056 The terminal block features a double-level spring-cage design with a nominal voltage of 500 V and a maximum nominal current capacity of 28 A. It uses spring-cage connection for the first and second levels, with rated cross-sections ranging from 0.08 mm2 to 6 mm2. The mounting type is available in two options: NS 35/7,5 and NS 35/15, and it has a gray color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Two large-surface labeling options
