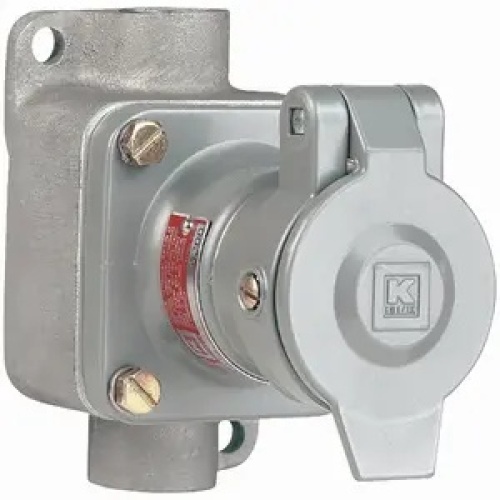

Killark KRJC-220 - Hazardous Location Receptacle - 3 Wire, 20 Amp
Normally In Stock
Code: 635763
Killark KRJC-220 - KRJC Series - 20 Amp Receptacle With Enclosure - 2P 3W Circuit- 115/230VAC At 60Hz - Hub Size 3/4 Inch - Feed Thru
Condition: New
Usually Ships Same Day or Next Day$1530.38
Sale Price
$1275.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark KRJC-220 - Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc. Wire leads for termination. Factory sealed receptacles. Copper free aluminum housing. Straight or angle type back boxes. Delayed action contacts ensure safe interconnect. Extra long grounding pin makes contact first and breaks contact last The Killark KP/KR series of plugs and receptacles provide a robust solution for applications requiring a heavy duty plug/receptacle. Plugs and receptacles may be used where devices are needed in locations made hazardous by the presence of flammable gases or vapors. The delayed action assembly ensures that the plug cannot be removed under load, preventing a dangerous arc or spark. Factory sealed construction specifies that no additional external seals are required. KP series plugs utilize soldered terminals, whereas KR series receptacles utilize wire leads for termination. - Class I, Divisions 1 & 2, Groups C, D - Class I, Zones 1 & 2, Groups IIB,IIA
Specifications
Receptacle Amperage
20 Amp
Receptacle NPT Size
3/4"
Component
Receptacle
Receptacle Number of Poles
2 Pole
Receptacle Number of Wires
3 Wire
Manufacturer
Killark
Receptacle Composition
Copper Free Aluminum
Receptacle NEMA Type
Type 7
Features
The Killark KP/KR series of plugs and receptacles provide a robust solution for applications requiring a heavy duty plug/receptacle
Plugs and receptacles may be used where devices are needed in locations made hazardous by the presence of flammable gases or vapors
The delayed action assembly ensures that the plug cannot be removed under load, preventing a dangerous arc or spark
Factory sealed construction specifies that no additional external seals are required
KP series plugs utilize soldered terminals, whereas KR series receptacles utilize wire leads for termination
