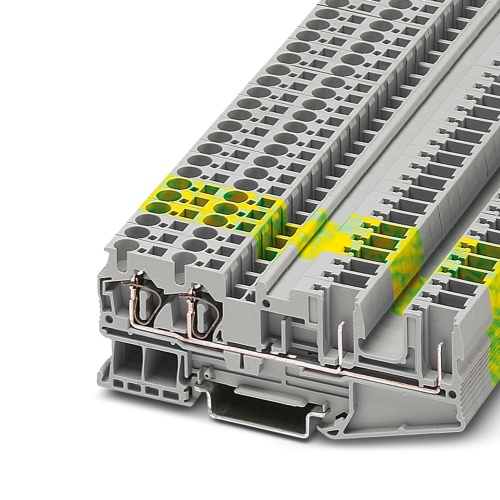

Phoenix Contact 3042845 Feed-through terminal block ST 4-QUATTRO/2P
Normally In Stock
Code: 63575
ST 4-QUATTRO/2P Phoenix 3042845 Plug-in terminal block Spring-cage/plug-in connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.04
Sale Price
$3.37
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042845 A feed-through terminal block features a nominal voltage of 800 V and an accompanying current capacity of up to 32 A, with four available connections that utilize a spring-cage/plug-in connection method for the right-hand side connection. The rated cross-sectional area is 4 mm2, but it can accommodate smaller cross-sections ranging from 0.08 mm2 to 6 mm2, and mounting types include NS 35/7,5 and NS 35/15, all with a standard gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The plug-in ST-COMBI spring-cage terminal block series combines the system advantages of the ST standard terminal block series with those of the COMBI plug-in system
Tested for railway applications
