Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

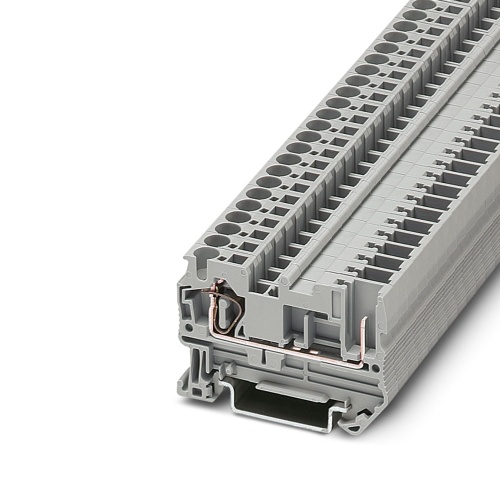

Phoenix Contact 3042719 Feed-through terminal block ST 4/ 1P
Normally In Stock
Code: 63574
ST 4/ 1P Phoenix 3042719 Plug-in terminal block Spring-cage/plug-in connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.29
Sale Price
$1.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042719 A feed-through terminal block has a nominal voltage of 800V and a nominal current capacity of 32A, with two connections that can be made using a spring-cage/plug-in connection. The rated cross-sectional area for the left connection is 4mm2, while the right connection's cross-sectional range is between 0.08mm2 and 6mm2. The terminal block is mounted using an NS35/7.5 or NS35/15 mounting type and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The plug-in ST-COMBI spring-cage terminal block series combines the system advantages of the ST standard terminal block series with those of the COMBI plug-in system
Tested for railway applications
