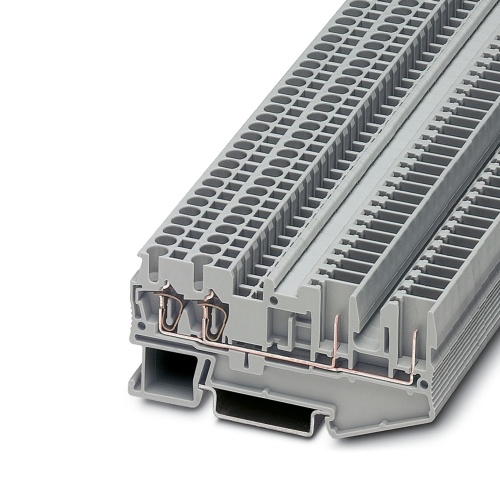

Phoenix Contact 3040038 Feed-through terminal block ST 2,5-QUATTRO/2P
Normally In Stock
Code: 63562
ST 2,5-QUATTRO/2P Phoenix 3040038 Plug-in terminal block Spring-cage/plug-in connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.25
Sale Price
$2.71
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3040038 A feed-through terminal block has a nominal voltage of 500 V and a nominal current rating of 24 A, accommodating up to four connections using a spring-cage/plug-in connection method. The cross-sectional area for the first level connections ranges from 0.08 mm2 to 4 mm2, with a rated cross-section of 2.5 mm2. Mounting options include NS35/7.5 and NS35/15 configurations, while the terminal block itself is gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The plug-in ST-COMBI spring-cage terminal block series combines the system advantages of the ST standard terminal block series with those of the COMBI plug-in system
Tested for railway applications
