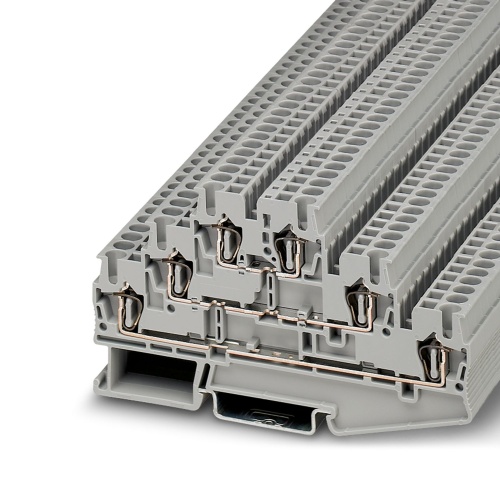

Phoenix Contact 3036042 Multi-level terminal block ST 2,5-3L
Normally In Stock
Code: 63541
ST 2,5-3L Phoenix 3036042 Multi-level terminal block Spring-cage connection 500 V 20 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.52
Sale Price
$6.27
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3036042 A multi-level terminal block features a nominal voltage of 500 V and a maximum current rating of 20 A with six connections. The connection method is a spring-cage design, and the cross-section varies by level from 0.08 mm² to 4 mm² at each of the first, second, and third levels. The terminal block is mounted using one of two types: NS 35/7,5 or NS 35/15, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Multi-Level Terminal Block
Features
Can be labeled on every level
Downloads
Phoenix 3036042 CAD data International.dxfPhoenix 3036042 CAD data International.pdfPhoenix 3036042 CAD data International.stpPhoenix 3036042 Data Sheet English.pdfPhoenix 3036042 Manufacturers declaration International-2.pdfPhoenix 3036042 Manufacturers declaration International-3.pdfPhoenix 3036042 Manufacturers declaration International.pdfPhoenix 3036042 Safety note English.pdfPhoenix 3036042 Tender Text English.zip
