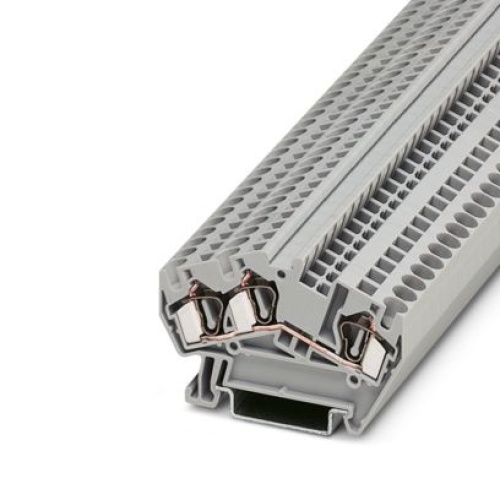

STS 4-TWIN/L Phoenix Contact 3036592 gray Multi-conductor Terminal Block
STS 4-TWIN/L Phoenix 3036592 Multi-conductor terminal block Spring-cage connection 800 V 32 Amp gray Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $4.66
Sale Price:
$2.86
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage connection, number of connections: 3, cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 800 Volt |
| Terminal Block Fused | Not Fused |
| Terminal Block Width | 6.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 3 |
| Terminal Block Component Color | Gray |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Max Wire Size | 10 |
| Terminal Block Connection Method | Spring-cage Connection |
| Terminal Block Min Wire Size | 28 |
| Terminal Block Amperage | 32 Amp |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Sub Component | Feed-through terminal block |
| Sub Component | Multi-conductor terminal block |
