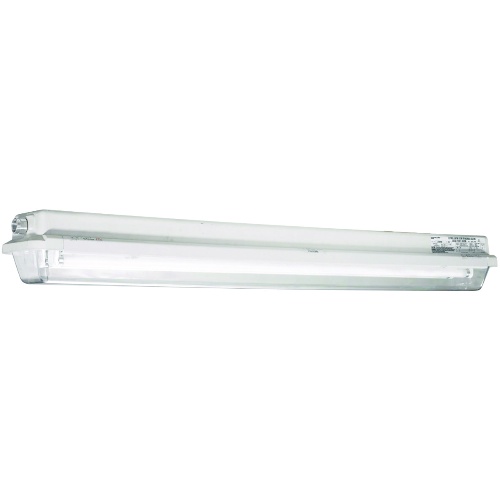

Killark LZ2NE2-32230 - LZ2NE Series Fluorescent Emergency Light - 32 Watts, 277 Volt
Normally In Stock
Code: 634722
Killark LZ2NE2-32230 - LZ2NE2 Series, Non-Metallic 32W Fluorescnt Emerg Power Lt Fixt (w/o Two 4-Foot Lamps), Double-Ended Lamp Type, 120-277V, 60Hz, Hub 3/4"
Condition: New
Usually Ships Same Day or Next Day$5596.79
Sale Price
$4663.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark LZ2NE2-32230 - NEMA 4 & IP66 rated enclosure. Housing-one piece fiberglass reinforced polyester or 316 Stainless Steel. Clear Lexan® impact resistant polycarbonate lens. Two 3/4” NTP hubs - one at each end (includes one 3/4” close-up plug and two 3/4” X 1/2” reducers for maximum user flexibility). Two 1/4”- 20 bushings furnished in top of fixture for threaded rod NEMA 4X and IP66 rated enclosure. Housing - one pices fiberglass reinforced polyester. Clear Lexan impact resistant polycarbonate lens. Two 3/4" NPT hubs - one at each end (includes one 3/4" close-up plug and two 3/4" x 1/2" reducers for maximum user flex - Class I, Division 2, Groups A, B, C, D - Class I, Zone 2, Groups IIC, IIB, IIA - Class II, Division 2, Groups F, G - Class III, Divisions 1 & 2
Specifications
Mounting
Surface
Max Volts
277 Volt
Bulb Type
Fluorescent
Manufacturer
Killark
Mounting
Pendant
Composition
Polyester
Max Watts
32 Watts
Component
Emergency Light
Optic Type
Polycarbonate Lens - Clear
Features
Lexan® Clear Lens, impact resistant polycarbonate
Housing-one piece fiberglass reinforced polyester, NEMA 4X & IP66 rated.
Two 3/4” NTP aluminum hubs - one at each end (includes one 3/4” close-up plug and two 3/4” x 1/2” reducers for maximum user flexibility)
Two 1/4”-20 aluminum bushings furnished in top of fixture for threaded rod
2’ and 4’ luminaries
Lamp typesLinear 17, 28, 32, 40, 44, 54, 60W Long compact 40, 55W (single ended)
Electronic ballast standard
World voltage (most models) 120 thru 277V, 50/60 Hz
