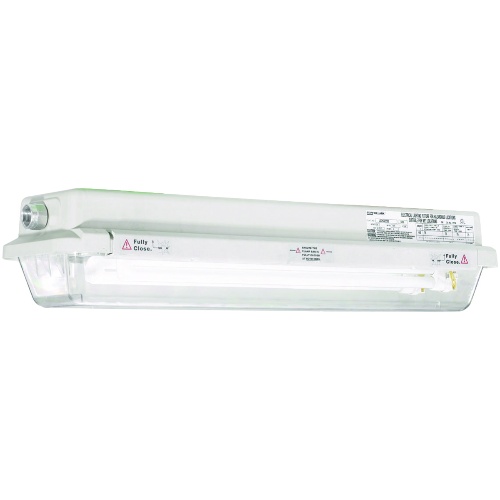

Killark LZ2N17230 - LZ2N Series Fluorescent Linear Light - 17 Watts, 277 Volt
Normally In Stock
Code: 634707
Killark LZ2N17230 - LZ2N Series- 17W 120-277V - 2' 2-Lamp T8 - Electronic 50/60 Hz 0°F Start Medium Bi-Pin
Condition: New
Usually Ships Same Day or Next Day$2469.22
Sale Price
$2057.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark LZ2N17230 - Lexan® Clear Lens, impact resistant polycarbonate. Housing-one piece fiberglass reinforced polyester, NEMA 4X & IP66 rated. Two 3/4” NTP aluminum hubs - one at each end (includes one 3/4” close-up plug and two 3/4” x 1/2” reducers for maximum user flexibility). Two 1/4”-20 aluminum bushings furnished in top of fixture for threaded rod. 2’ and 4’ luminaries. Lamp types Linear 17, 28, 32, 40, 44, 54, 60W Long compact 40, 55W (single ended). Electronic ballast standard. World voltage (most models) 120 thru 277V, 50/60 Hz The LZ2N Series Fluorescent Linear luminaires are designed for installation in high bay and low bay applications. This fixture is made with a non-metallic fiberglass reinforced housing that is suitable for harsh and hazardous environments. - Class I, Division 2, Groups A, B, C, D - Class I, Zone 2, Groups IIC, IIB, IIA - Class II, Divisions 1 & 2, Groups E, F, G - Class III, Divisions 1 & 2
Specifications
Mounting
Surface
Max Volts
277 Volt
Bulb Type
Fluorescent
Manufacturer
Killark
Mounting
Pendant
Component
Linear Light
NEMA Environment
IP66
Composition
Polyester
Optic Type
Polycarbonate Lens - Clear
Max Watts
17 Watts
Features
Lexan® Clear Lens, impact resistant polycarbonate
Housing-one piece fiberglass reinforced polyester, NEMA 4X & IP66 rated.
Two 3/4” NTP aluminum hubs - one at each end (includes one 3/4” close-up plug and two 3/4” x 1/2” reducers for maximum user flexibility)
Two 1/4”-20 aluminum bushings furnished in top of fixture for threaded rod
2’ and 4’ luminaries
Lamp typesLinear 17, 28, 32, 40, 44, 54, 60W Long compact 40, 55W (single ended)
Electronic ballast standard
World voltage (most models) 120 thru 277V, 50/60 Hz
