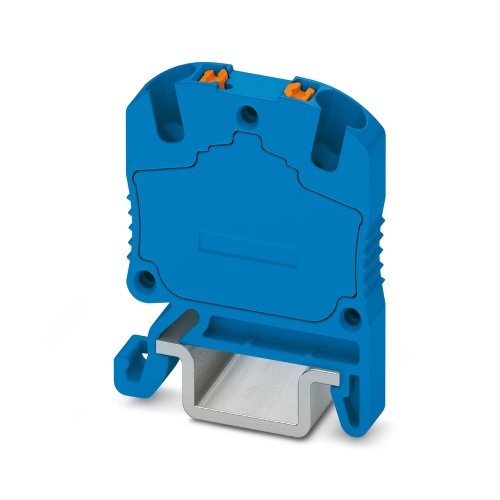

Phoenix Contact 3248152 Micro feed-through terminal block MP 1,5 BU
Normally In Stock
Code: 63431
MP 1,5 BU Phoenix 3248152 Miniature terminal block Push-in connection 500 V 17.5 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.16
Sale Price
$0.97
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3248152 The terminal block features a micro feed-through design with a nominal voltage of 500 V and a maximum current rating of 17.5 A. It accommodates two connections using a push-in connection method and has cross-sectional areas ranging from 0.14 mm2 to 1.5 mm2. The module is mounted on an NS 15 bracket, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Micro Feed-Through Terminal Block
Features
Flexible use, thanks to DIN rail and direct mounting
Clear arrangement thanks to marking of all terminal points
Convenient test options, thanks to test openings at every terminal point
Space-saving potential distribution, thanks to compact micro potential distributors
Space-saving, thanks to the compact design
