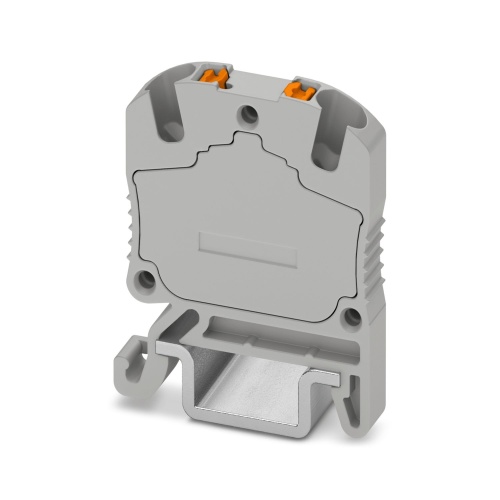

Phoenix Contact 3248150 Micro feed-through terminal block MP 1,5
Normally In Stock
Code: 63403
MP 1,5 Phoenix 3248150 Miniature terminal block Push-in connection 500 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.16
Sale Price
$0.97
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3248150 A micro feed-through terminal block has a nominal voltage of 500 V and can handle a nominal current of 17.5 A, supporting up to two connections using push-in connection method with cross-sections ranging from 0.14 mm² to 1.5 mm² and is mounted on an NS15 base with a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Micro Feed-Through Terminal Block
Features
Space-saving, thanks to the compact design
Clear arrangement thanks to marking of all terminal points
Convenient test options, thanks to test openings at every terminal point
Space-saving potential distribution, thanks to compact micro potential distributors
Flexible use, thanks to DIN rail and direct mounting
