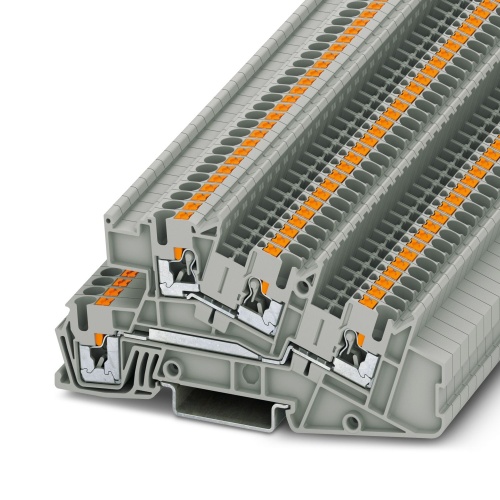

Phoenix Contact 3213953 Installation level terminal block PTI 2,5-L/L
Normally In Stock
Code: 63395
PTI 2,5-L/L Phoenix 3213953 Installation terminal block Push-in connection 400 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$5.35
Sale Price
$4.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213953 The terminal block features a push-in connection with various levels of installation, including 1st, 2nd and 3rd level, allowing for flexibility in usage. It has a nominal voltage of 400 V and a maximum current capacity of 24 A. The rated cross-sectional area ranges from 0.14 mm² to 4 mm², accommodating different cable sizes. Additionally, the push-in connection incorporates mounting types NS 35/7.5 and NS 35/15, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Installation Level Terminal Block
Features
Double function shafts on all levels
