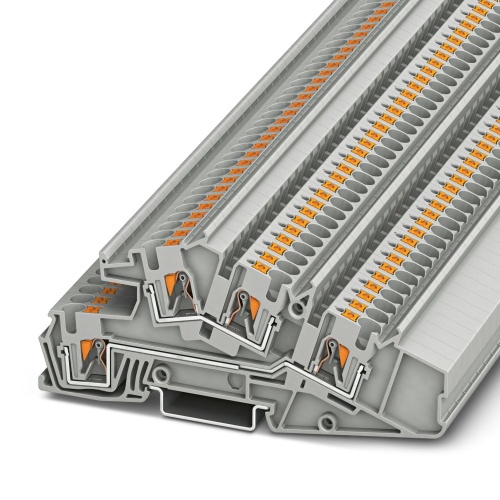

Phoenix Contact 3214052 Installation level terminal block PTI 4-L/L
Normally In Stock
Code: 63393
PTI 4-L/L Phoenix 3214052 Installation terminal block Push-in connection 400 V 28 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$5.14
Sale Price
$4.28
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214052 The installation level terminal block features a nominal voltage of 400 V and a maximum current capacity of 28 A, with push-in connections available at multiple levels. The rated cross-sectional area is 4 mm2, spanning from 0.2 mm2 to 6 mm2, all supported by the same push-in connection mechanism. Additionally, the mounting type includes NS 35/7,5 and NS 35/15 options, with a standard gray color scheme for these terminals.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Installation Terminal Block
Sub Component
Installation Level Terminal Block
Features
Compatible with all Phoenix Contact installation terminal blocks
As well as the testing facility in the function shaft, each terminal point has a test contact
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
Compact design tailored to distribution boards
Double function shafts on all levels
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
