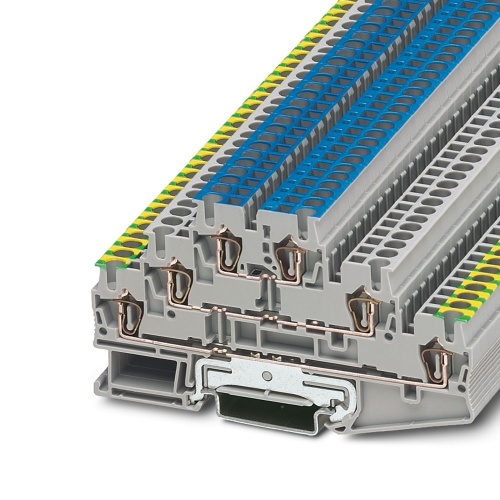

Phoenix Contact 3036084 Multi-level terminal block ST 2,5-PE/L/N
Normally In Stock
Code: 63315
ST 2,5-PE/L/N Phoenix 3036084 Ground terminal block Spring-cage connection 500 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$11.65
Sale Price
$9.71
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

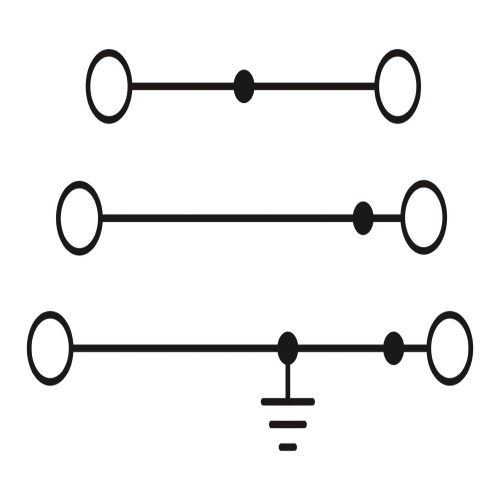

Phoenix Contact 3036084 A multi-level terminal block with a nominal voltage of 500 V and a nominal current capacity of 22 A has six connections, secured by spring-cage connections. The cross-sectional area varies across the three levels, ranging from 0.08 mm2 to 4 mm2 for the first, second, and third levels, respectively. The mounting type is NS35/7,5 or NS35/15 and features a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Ground Terminal Block
Sub Component
Spring Cage Ground Terminal Block
Features
The color coding of the PE and N levels helps to create clear and unambiguous potential distribution
Downloads
Phoenix 3036084 CAD data International.dxfPhoenix 3036084 CAD data International.pdfPhoenix 3036084 CAD data International.stpPhoenix 3036084 Data Sheet English.pdfPhoenix 3036084 Manufacturers declaration International-2.pdfPhoenix 3036084 Manufacturers declaration International.pdfPhoenix 3036084 Safety note English.pdfPhoenix 3036084 Tender Text English.zip
